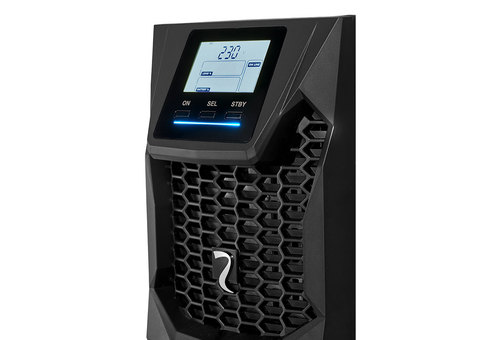

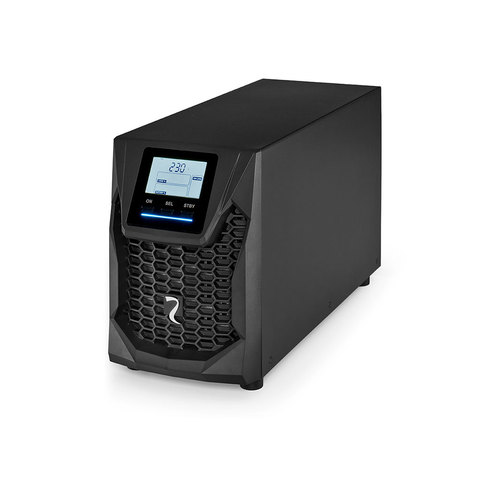

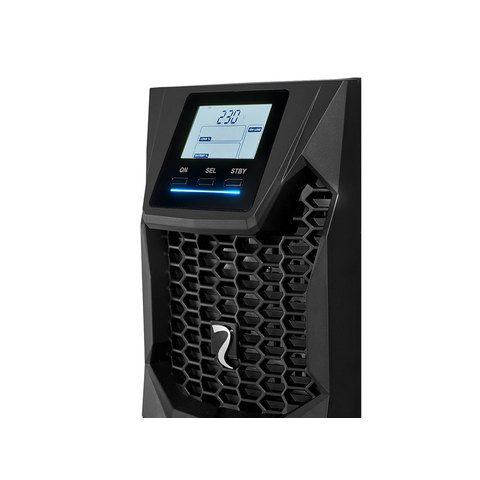

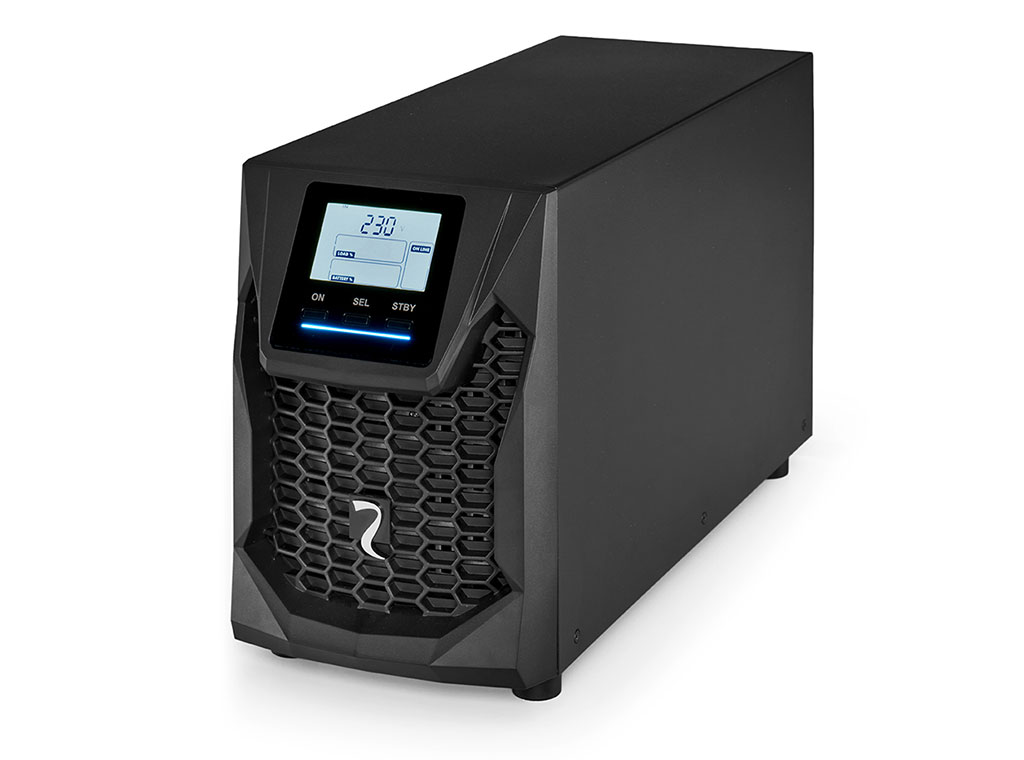

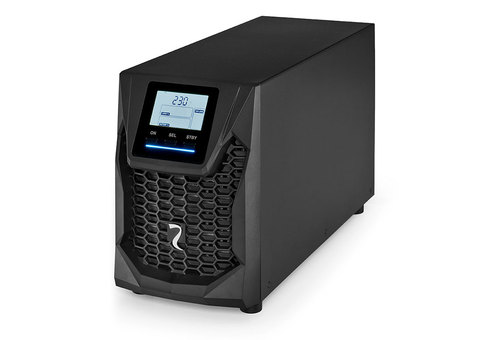

Sentinel Pro2 208-240 V 1ph

Power Range: 700 - 3000 VA
1:1

Input 208-240 V 60 Hz
Output 220/240 V 60 Hz



Sentinel Pro2 has a unique, modern design and improved performance created by the Riello UPS research and development team. Sentinel Pro2 uses ON LINE double conversion technology, resulting in the highest levels of reliability and maximum protection for critical loads such as servers, IT and voice/data applications.

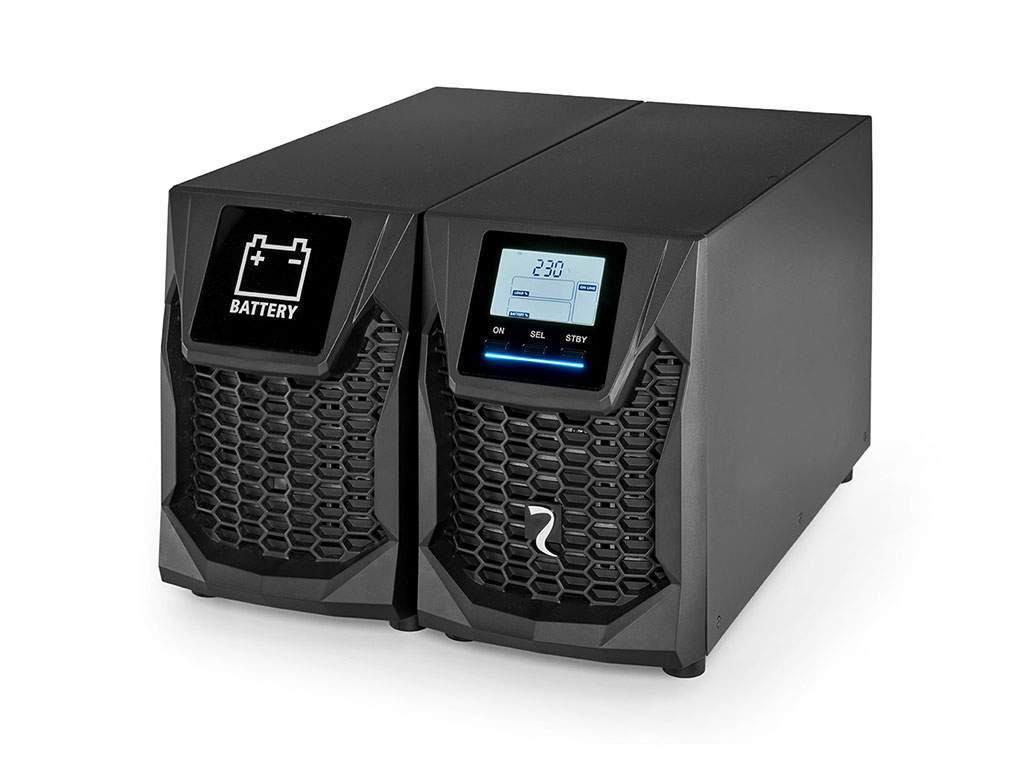

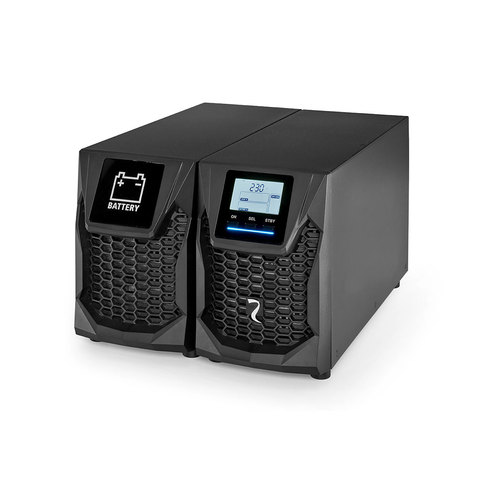

For business continuity applications requiring long battery runtimes, battery autonomy can be extended up to several hours using ER models fitted with more powerful battery chargers.

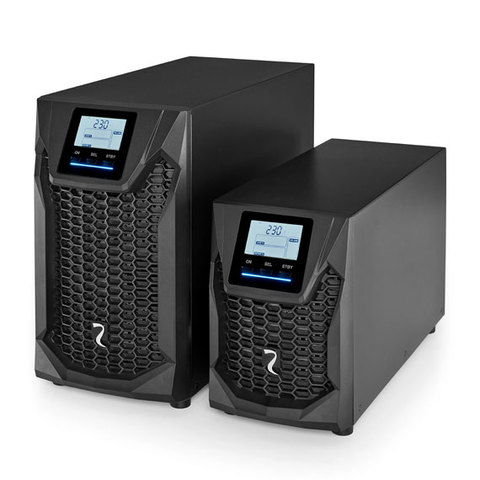

Sentinel Pro2 is supplied as standard with a USB port and an expansion slot for protocol conversion or relay contacts boards. Sentinel Pro2 is available in 700 VA, 1000 VA, 1500 VA, 2200 VA and 3000 VA models.

Sentinel Pro2
Request Information
Sentinel Pro2

HIGHLIGHTS

  • Power factor 1

  • Operating flexibility

  • Emergency function

  • Battery optimisation

  • Runtime expandability

  • Low noise level

Brochures and data sheets

Select File Language:

Sentinel Pro2 208-240 V 1ph

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh
Technical specifications of the model

FEATURES

  • Filtered, stabilised and reliable voltage: double conversion ON LINE technology (VFI compliant with IEC 62040-3) with filters for the suppression of atmospheric disturbances;
  • High overload capability (up to 150%);
  • Programmable Auto-restart when mains is restored;
  • Battery start up (Cold Start);
  • Wide input voltage tolerance range (from 140 V to 276 V) without battery intervention;
  • Runtime extendable up to several hours;
  • Fully configurable using UPS Tools configuration software;
  • Highly reliable batteries (automatic and manually-activated battery test);
  • High level of UPS reliability (total microprocessor control);
  • Low impact on the mains (sinusoidal take up).

ADVANCED COMMUNICATION

  • Multi-platform communication for all operating systems and network environments: PowerShield3 supervision and shutdown software for Windows operating systems 10, 8, 7, Hyper-V, 2019, 2016, 2012, and previous versions, Mac OS X, Linux, VMWare ESXi, Citrix XenServer and other Unix operating systems;
  • UPS Tools configuration and customisation software supplied as standard;
  • Communication port with RJ45 connector and opto isolated contact;
  • USB port;
  • Slot for communications boards.

2-YEAR WARRANTY

Gallery

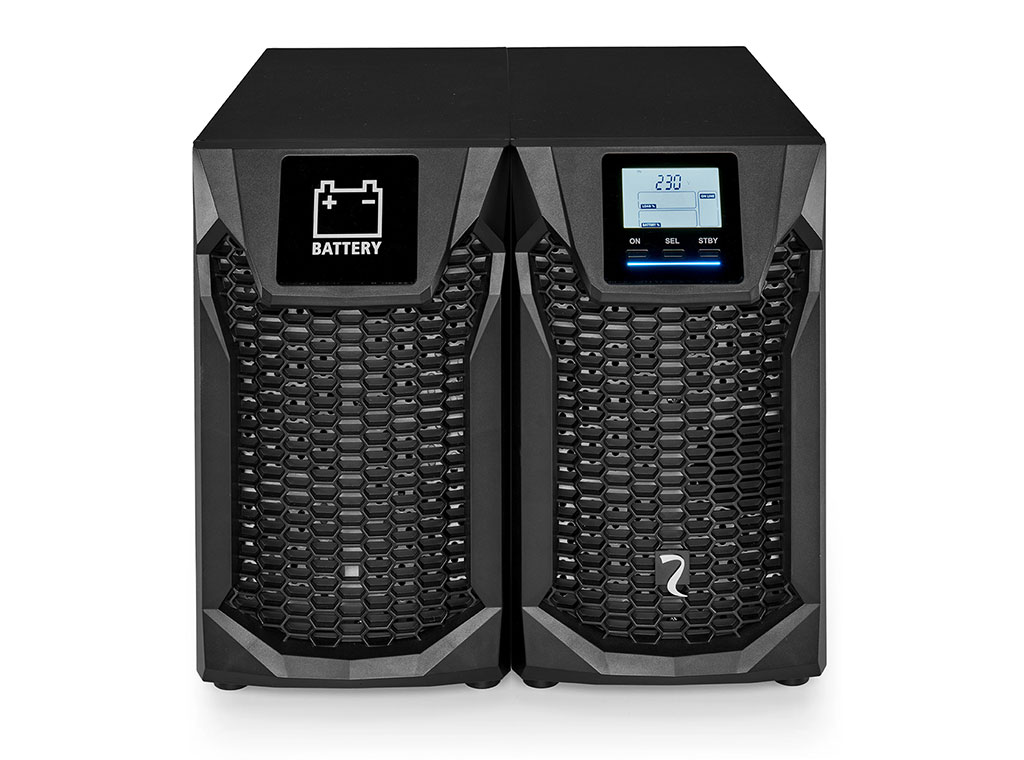

  • Sentinel Pro2

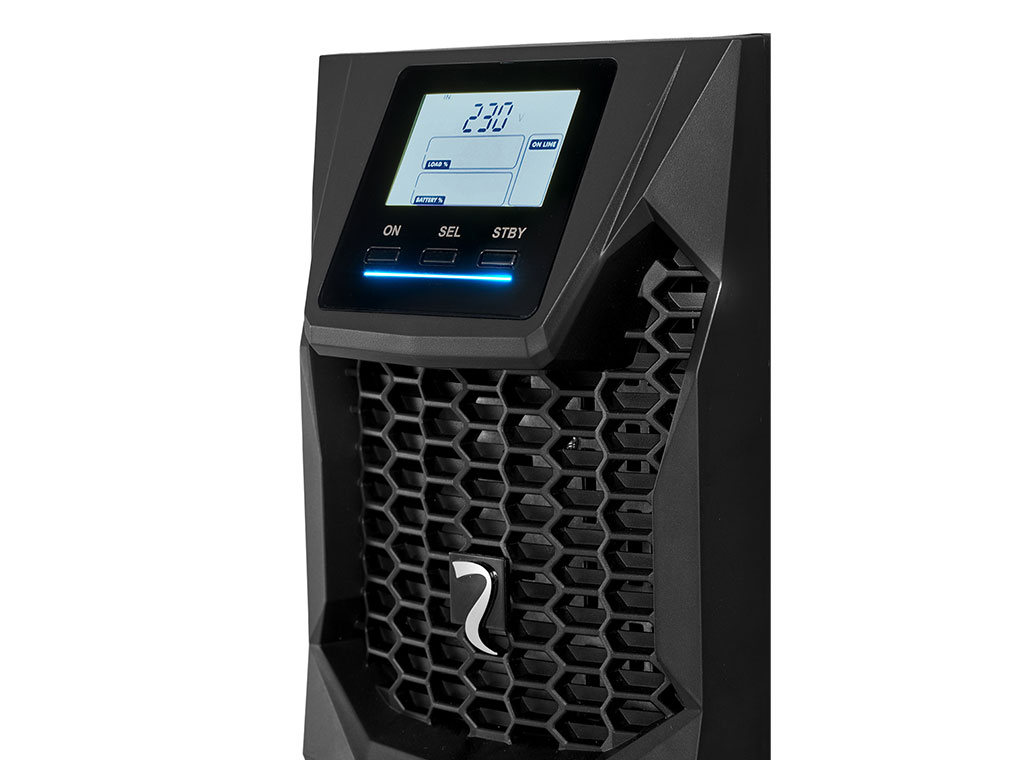

  • Sentinel Pro2

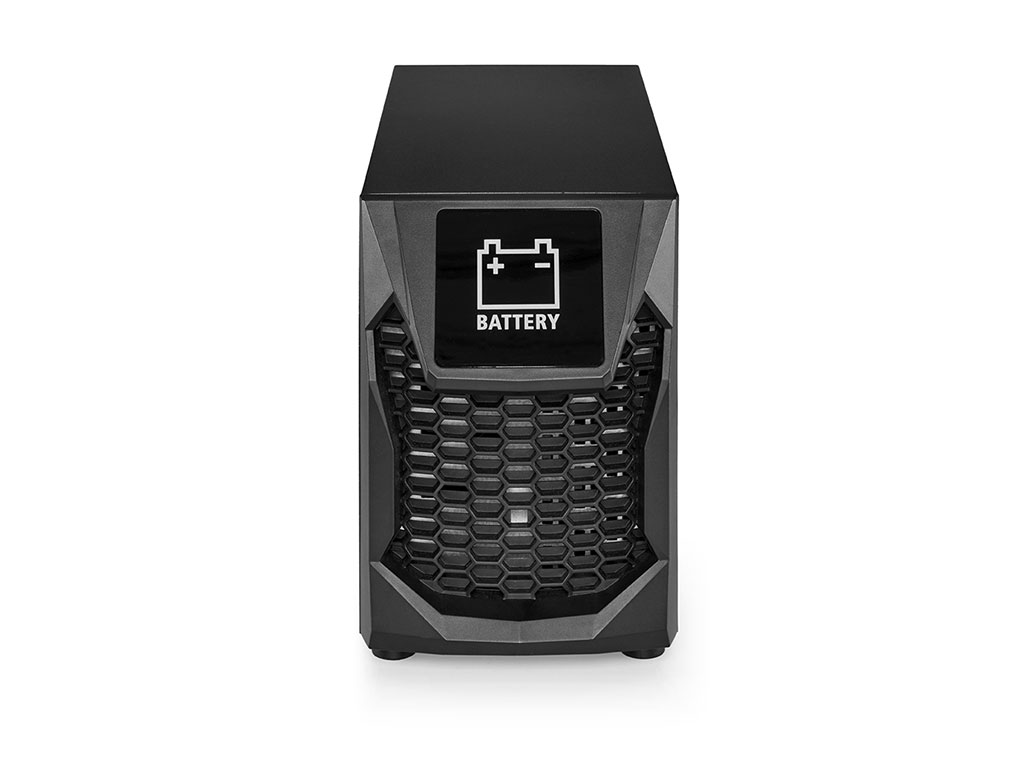

  • Sentinel Pro2
  • Sentinel Pro2
